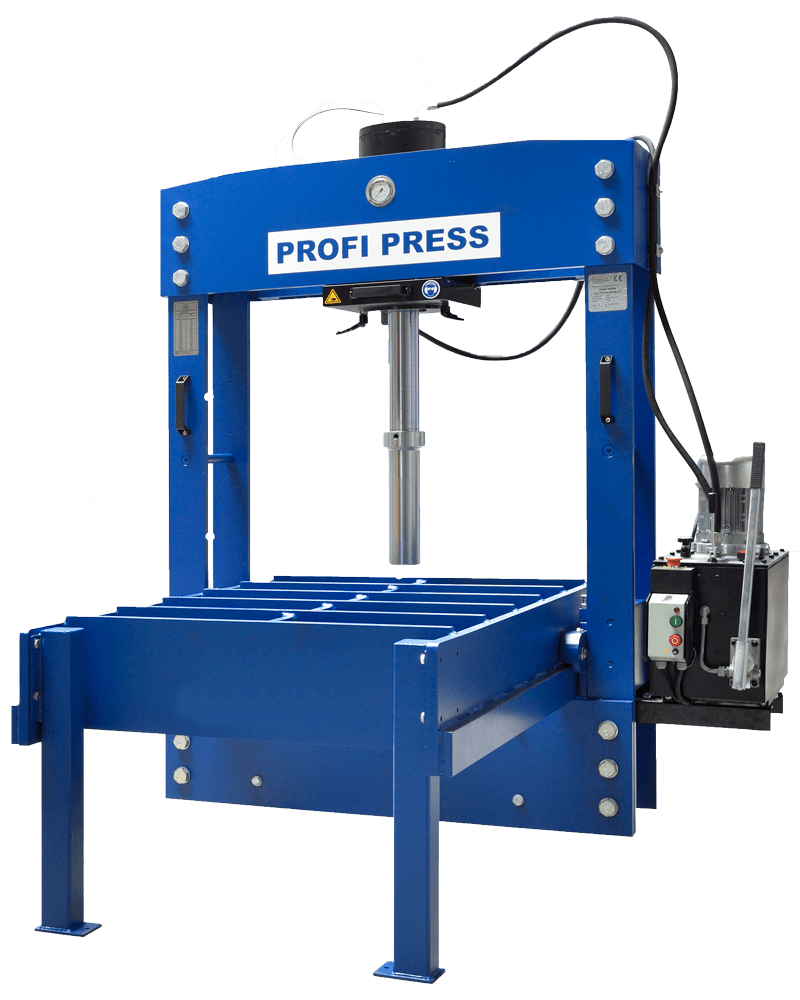

100 Ton Portal Press: PPTL-100
This 100 ton portal press has a manually movable portal and is exclusively made in Europe.
Thanks to the movable portal and cylinder you can easily reach every point of the ‘to be pressed’ surface. The design of this portal press makes it possible to place heavy material on the table with a crane and to slide the portal over the material when the pressing starts.
The quality of these hydraulic straightening presses is very high. Furthermore, the hydraulic unit is equipped with a pressure regulator, 2 speeds, directional control valve for the piston movement and a hand pump for precision pressing. The operation of these presses is the same as our motorised workshop presses.
Our 100 ton portal press is directly available from our stock in the Netherlands.
We can easily customize these hydraulic presses as well, so if you need a larger table, a longer piston stroke or a bigger clearance between the piston and the table, please let us know, we can tailor these portal presses entirely to your requirements!
Technical specifications of this 100 ton portal press
- Pressure force [kN]: 981
- Motor power [kW]: 3
- Working speed [mm/sec]: 3
- Approaching speed [mm/sec]: 9.5
- Return speed [mm/sec]: 12
- Maximum pressure [bar]: 258
- Piston stroke [mm]: 380
- Table size (L x W) [mm]: 1740 x 996
- Vertical light [mm]: 700
- Working height [mm]: 720
- Manually movable cylinder and frame
- Total height [mm]: 2034
- Total length [mm]: 1740
- Total width [mm]: 1670
- Weight [kg]: 1685
Features of this PPTL-100
- Manually movable portal
- Movable cylinder (left – right)
- Cylinder extension to reach the table
- Integrated pressure manometer
- Pressure regulation
- Hydraulic unit with two speeds
- Joystick / directional control valve for the control of the piston
- Hand pump for precise press work
We also have portal presses with 1500 mm working width in our standard hydraulic press – program. You can find them here on our website.
Standard or customized, our portal presses are real best-sellers!
Suitable for many different pressing and straightening jobs. On our YouTube-Channel you can find this video of a customized gantry press that is used to press axis out of gear wheels. Or below you can see an example of a hydraulic portal press with a large working width, including table plate. This machine was delivered to CLAAS. The possibilities are endless, so let us know about your requirements, we are excited to help you with your next project.
