100 Ton Workshop Press (100 ton M/H-M/C-2)
The 100 ton workshop press is our all-time best-seller!

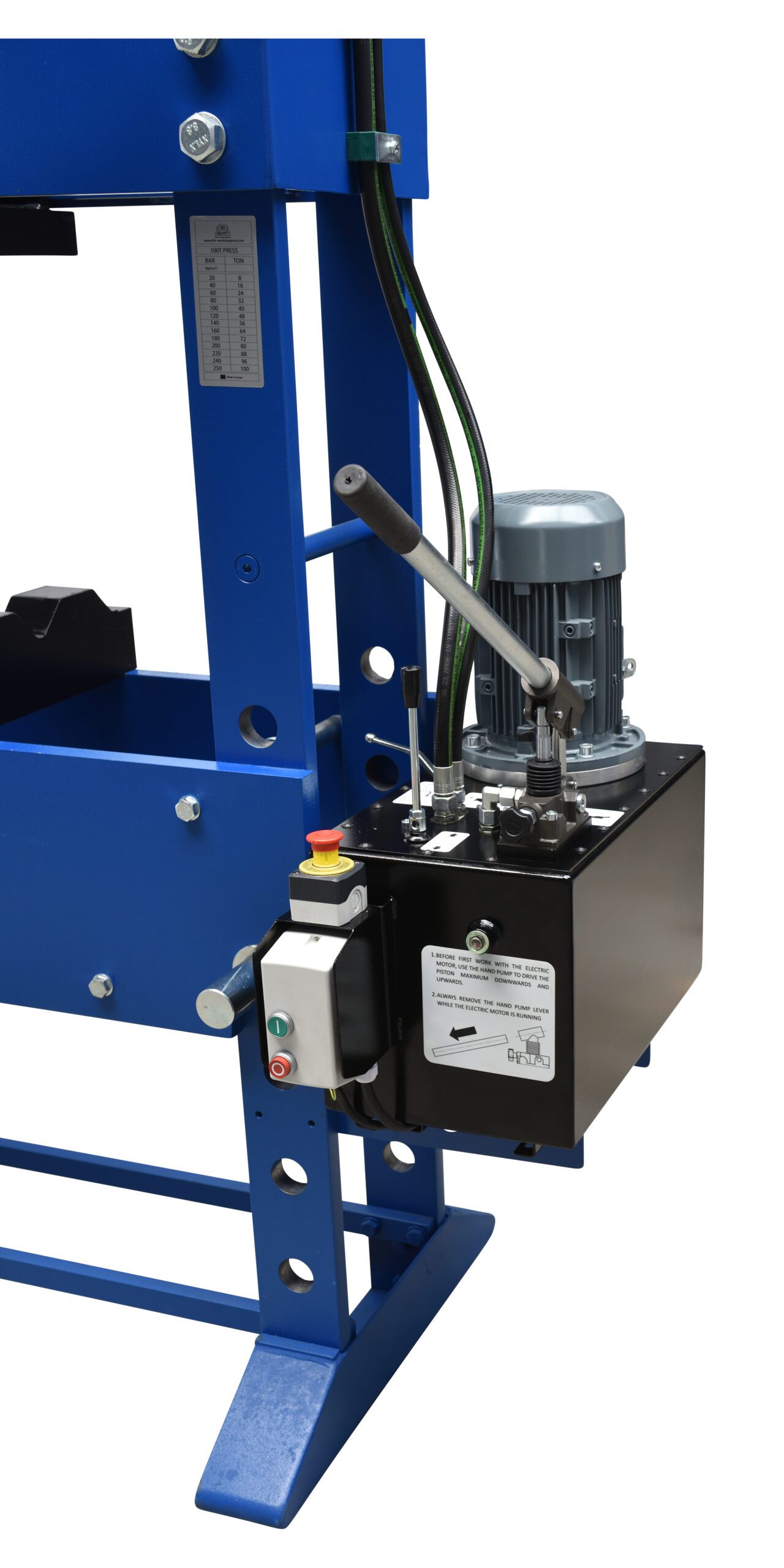

Our 100 ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
The Profi Press motorised workshop presses are exclusively made in Europe and directly available from our stock.
We show this 100 ton workshop press in our RHTC showroom and deliver it directly from our stock all over the world. Contact us for more information or for a personalized quote for one of our Profi Press hydraulic workshop presses!
Technical specifications
- Pressure force [kN]: 981
- Maximum pressure [bar]: 258
- Piston stroke [mm]: 380
- Oil delivery [ltr/min]: 5.64/17.2
- Oil capacity [dm³]: 46
- Working speed [mm/sec]: 2.47
- Approaching speed [mm/sec]: 7.54
- Return speed [mm/sec]: 9.06
- Motor power [kW]: 2.2
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- Revolutions per minute [rpm]: 3000
- Insulation protection [IP]: 54
- Working width [mm]: 1100
- Weight [kg]: 970
Diameters
- Inside diameter of cylinder [mm]: 220
- Diameter of piston rod [mm]: 90
- Diameter of piston head [mm]: 120
Features of this 100 ton workshop press
- Movable cylinder (left-right)
- Integrated pressure manometer
- Pressure regulation
- Hydraulic unit with two speeds
- In height adjustable working table
- Joystick for the control of the piston
- Hand pump for precise press work
- Foot pedal, hand remote controller or two-hands operation
- V-block set for extra support
- Mandrel set of ∅ 18, 33, 45, 58 and 72 mm (with suitable piston head)
- Digital read-out for the piston stroke
- Protection screens / guarding around the press
Dimensions
- A: 2140
- B: 1350
- C: 755
- D: 1100
- E: 300
- F: 1665
- G: 150
- H: 180
- I: 750
- J: 865
- K: 250
Videos of our motorised workshop presses can be found on our RHTC YouTube-channel.
