100 Ton Production Press: PPHD-100
Our 100 ton production press is suitable for stamping, die-cutting, pressing and forming. This hydraulic press can be incorporated in automated production lines as well.
This hydraulic press is equipped with a mechanized lower- and upper table with T-grooves. Cylindrical, lateral guides are installed to ensure a perfect alignment of the upper table. Furthermore, with the NC-control you can digitally set the pressure, piston stroke, holding time and save up to 100 different working cycles. Operation with a foot pedal.
We produce this robust production press in Europe. Delivered according to the latest CE-standards: high quality guaranteed!
Find out more about the technical details and features of this 100 ton production press by scrolling down!
Contact us for more information or ask us for a quotation via the button below.
Technical specifications of the 100 ton production press
- Pressure force [tn]: 100
- Motor power [kW]: 7.5
- Working speed [mm/sec]: 7
- Approaching speed [mm/sec]: 28
- Returning speed [mm/sec]: 39.9
- Piston stroke [mm]: 400
- Vertical light [mm]: 480
- Frontal light [mm]: 850
- Lower table size [mm]: 700 x 500
- Upper table size [mm]: 600 x 450
- Table- / working height [mm]: 875
- Total length (lateral) [mm]: 1080
- Total width (frontal) [mm]: 1600
- Overall height [mm]: 2650
- Weight [kg]: 2800
Features of the PPHD-100
- Rigid and robust machine frame
- Upper- and lower table with T-grooves
- Cylindrical lateral guides for a perfect alignment of the upper table
- The working area is protected by light guards in the front and the back side is protected by a protection screen (optionally you can choose for a second set of light guards or a protection door with microswitch)
- NC-control to digitally set pressure, piston stroke and holding time
- Availability to save up to 100 different working cycles / programs by means of the NC-control
- Selector for manual / (semi-)automatic operation
- Operation by means of a foot pedal (optionally you can choose for two-hands operation)
Optional accessories for our production presses
- High approach- and return speed by prefilling valves and lateral cylinders
- Hydraulic cushion
- Hydraulic ejector placed in the upper- or lower table or in both tables
- Cooling equipment for the hydraulic group by an air-oil cooling system

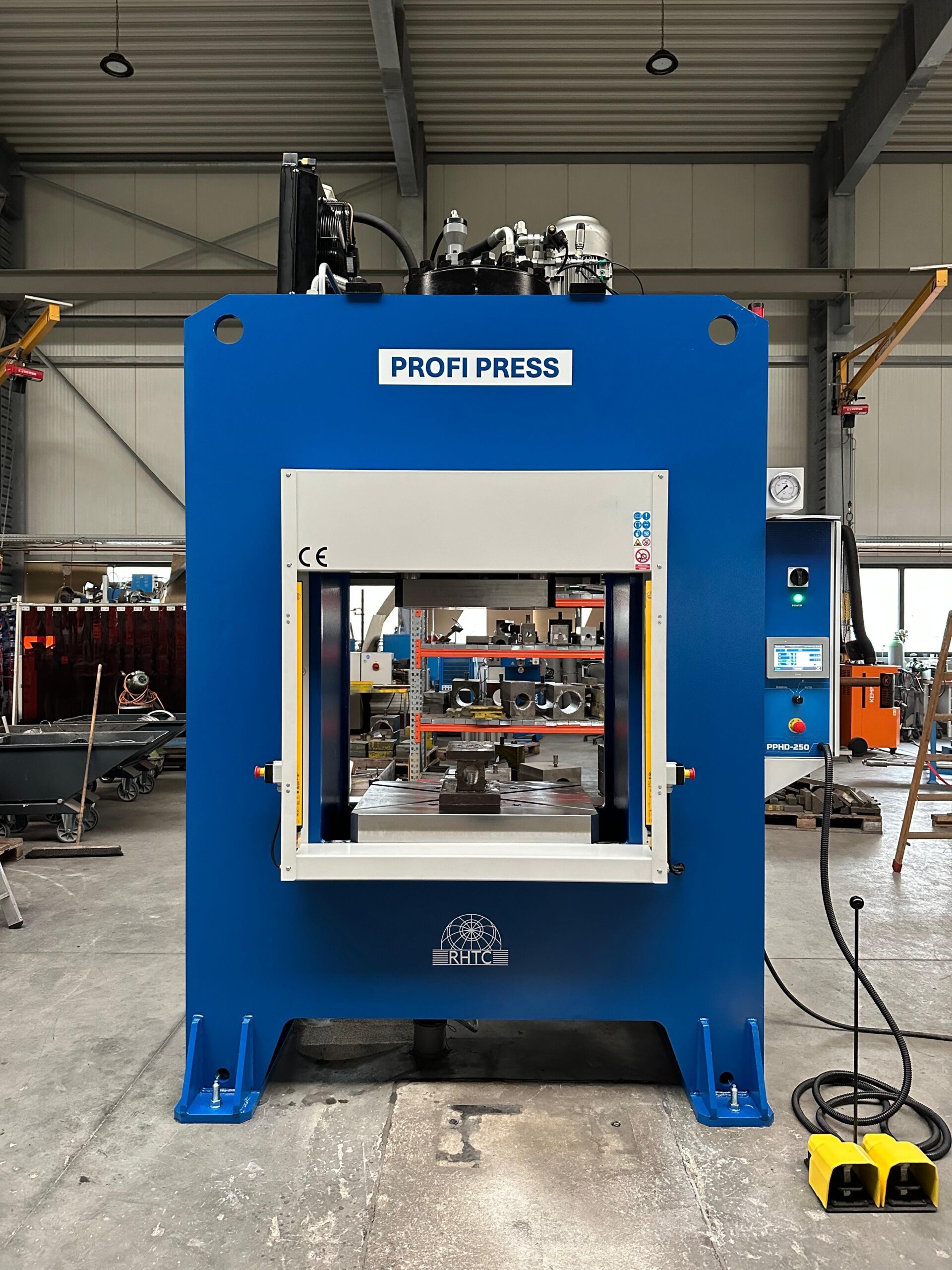

We can customize these 100 ton production presses entirely to tailored needs as well. Have a look at this custom-made Production Press below, what a beauty!
