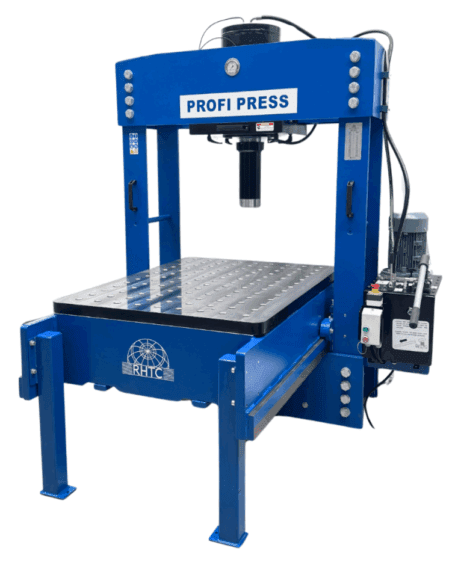

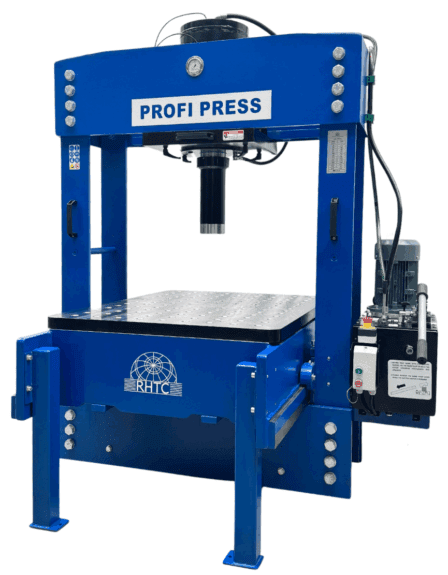

160 Ton Portal Press: PPTL-160
This 160 ton portal press has a manually movable portal and is exclusively made in Europe with high quality components.
Thanks to the manually movable portal and movable cylinder you can easily reach every point of the ‘to be pressed’ surface. The design of this portal press makes it possible to place heavy material on the table with a crane and to slide the portal over the material when the pressing starts.

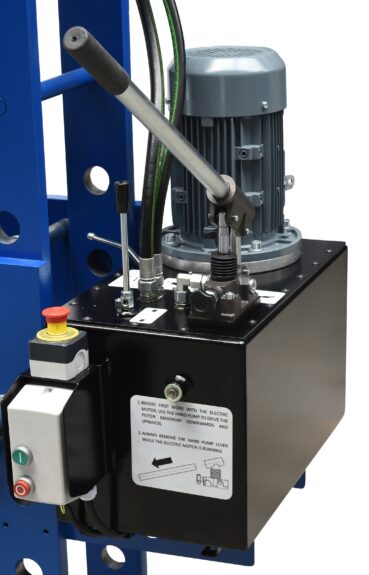

The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, directional control valve for the piston movement and a hand pump for precision pressing. The operation of these presses is the same as our motorised workshop presses; easy and effortless.
Our 160 ton portal press is directly available from our stock in the Netherlands.
We can easily customize these hydraulic presses as well, so if you need a larger table, a longer piston stroke or a bigger clearance between the piston and the table, please let us know, we can tailor these portal presses entirely to your requirements!
Technical specifications of this 160 ton portal press
- Pressure force [kN]: 1570
- Motor power [kW]: 3
- Working speed [mm/sec]: 2.40
- Approaching speed [mm/sec]: 7.48
- Return speed [mm/sec]: 9.35
- Maximum pressure [bar]: 255
- Piston stroke [mm]: 400
- Table size (L x W) [mm]: 1740 x 996
- Working width [mm]: 1100
- Vertical light [mm]: 700
- Working height [mm]: 760
- Manual movable cylinder and frame
- Total height [mm]: 2104
- Total length [mm]: 1740
- Total width [mm]: 1725
- Weight [kg]: 2265
Features of the PPTL-160
- Movable portal
- Movable cylinder
- Cylinder extension to reach the table
- Integrated pressure manometer
- Pressure regulation
- Hydraulic unit with two speeds
- Joystick / Directional control valve for the control of the piston
- Hand pump for precise press work
Standard or customized, our portal presses are real best-sellers!
Suitable for many different pressing and straightening jobs. On our YouTube-Channel you can find this video of a customized 160 ton gantry press that is used to press axis out of gear wheels. Or below you can see an example of a hydraulic portal press with a movable collection tray underneath the table. The possibilities are endless, so let us know about your requirements, we are excited to help you with your next project.
