Workshop Press 60 Ton
Our 60 ton workshop press can be delivered with a fixed cylinder (60 Ton M/H-2) or a movable cylinder (60 Ton M/H-M/C-2). All our workshop press models have an in-height adjustable working table (motorised). Equipped with pressure regulation, manometer, 2 speeds and a directional control valve to move the piston up and down. With this valve you are able to move the piston precisely, which makes this hydraulic press perfectly suitable for precision tasks. Additionally, this workshoppress is equipped with a hand pump for manual pressing jobs.
Directly available from our stock in the Netherlands.
Technical specifications
- Pressure force [kN]: 600
- Maximum pressure [bar]: 259
- Piston stroke [mm]: 380
- Oil capacity [dm³]: 52
- Working speed [mm/sec]: 2,87
- Approaching speed [mm/sec]: 9,5
- Return speed [mm/sec]: 12
- Motor power [kW]: 2.2
- Voltage [V]: 400 V / 3ph + N + PE
- Frequency [Hz]: 50/60
- Working width [mm]: 750
- Weight [kg]: 540
Diameters
- Inside diameter of cylinder [mm]: 170
- Diameter of piston rod [mm]: 75
- Diameter of piston head [mm]: 100
Features of this workshop press (60 ton)

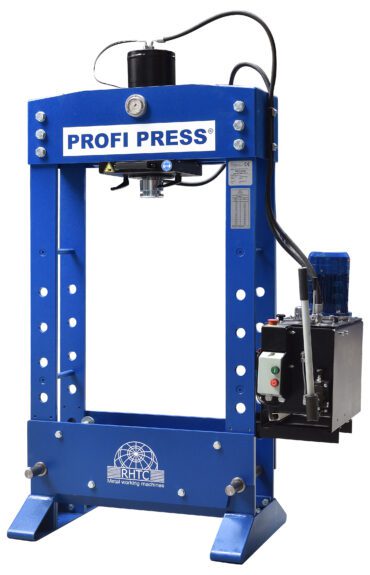

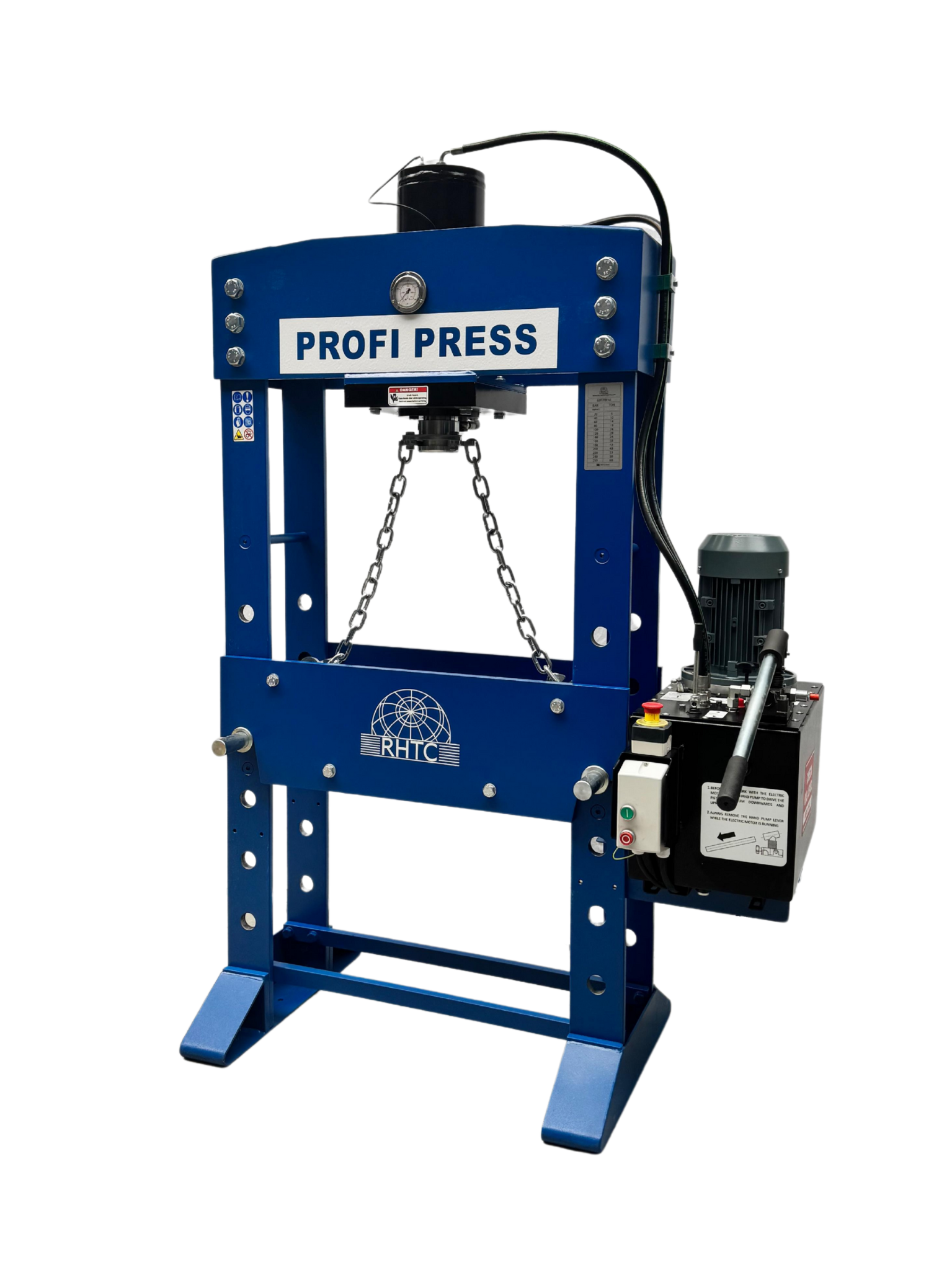

- Fixed (60 ton M/H-2) or Movable cylinder (60 ton M/H-M/C-2)
- Integrated pressure manometer
- Pressure regulation

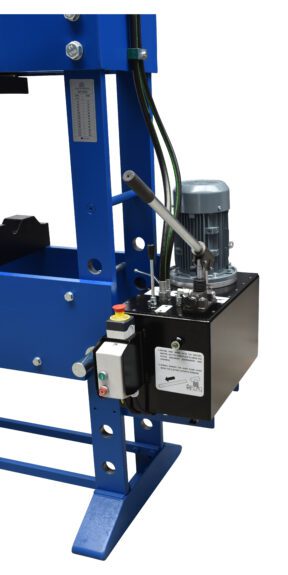

- Hydraulic unit with a 2-speeds handle
- In height adjustable working table
- Joystick for the control of the piston
- Hand pump for precision pressing
- Foot pedal, two-hands operation or hand remote controller
- V-block set for extra support
- Mandrel set / Pressure pins
- Digital stroke read-out

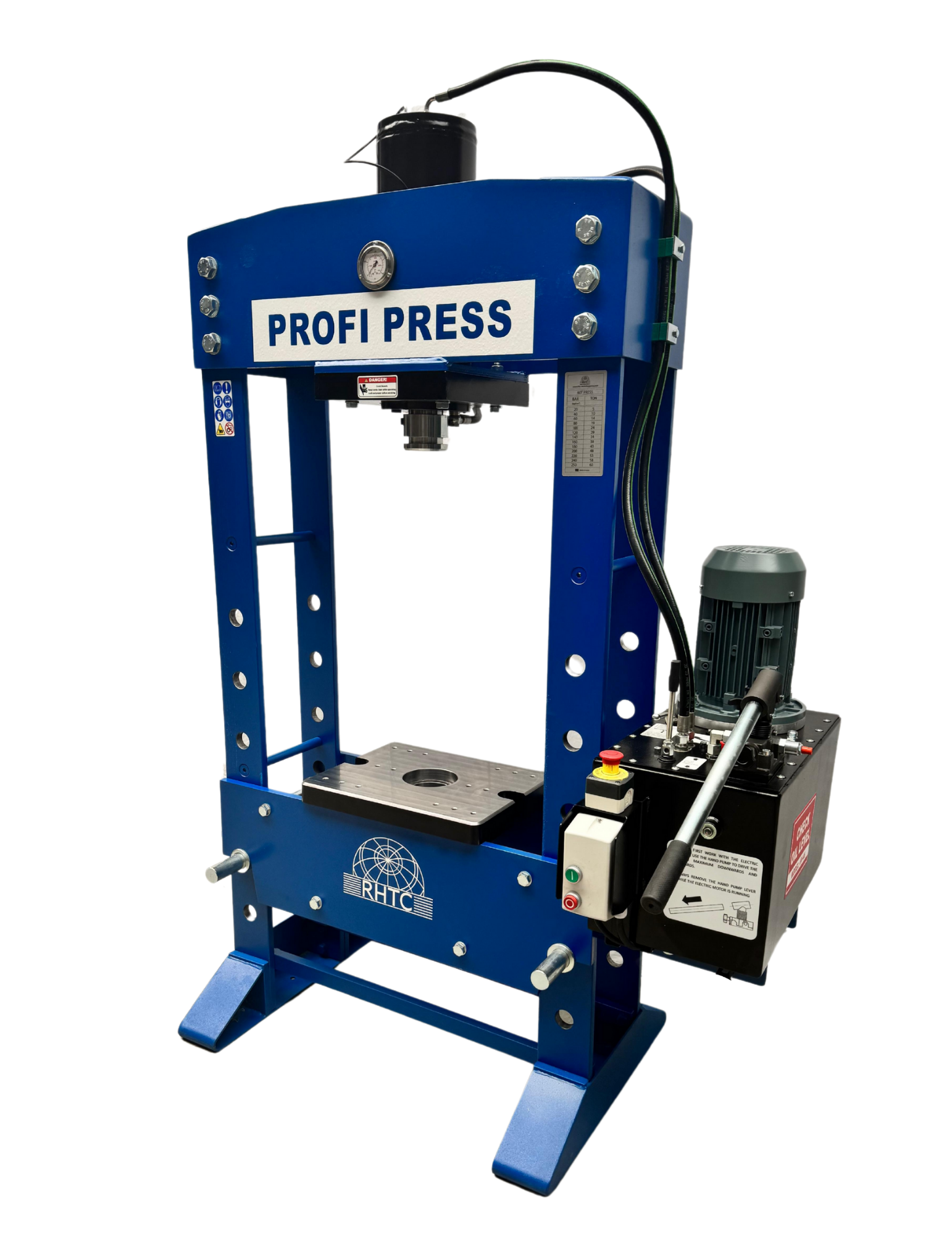

- Table plate / pressing table
- Protection screens (customisable)

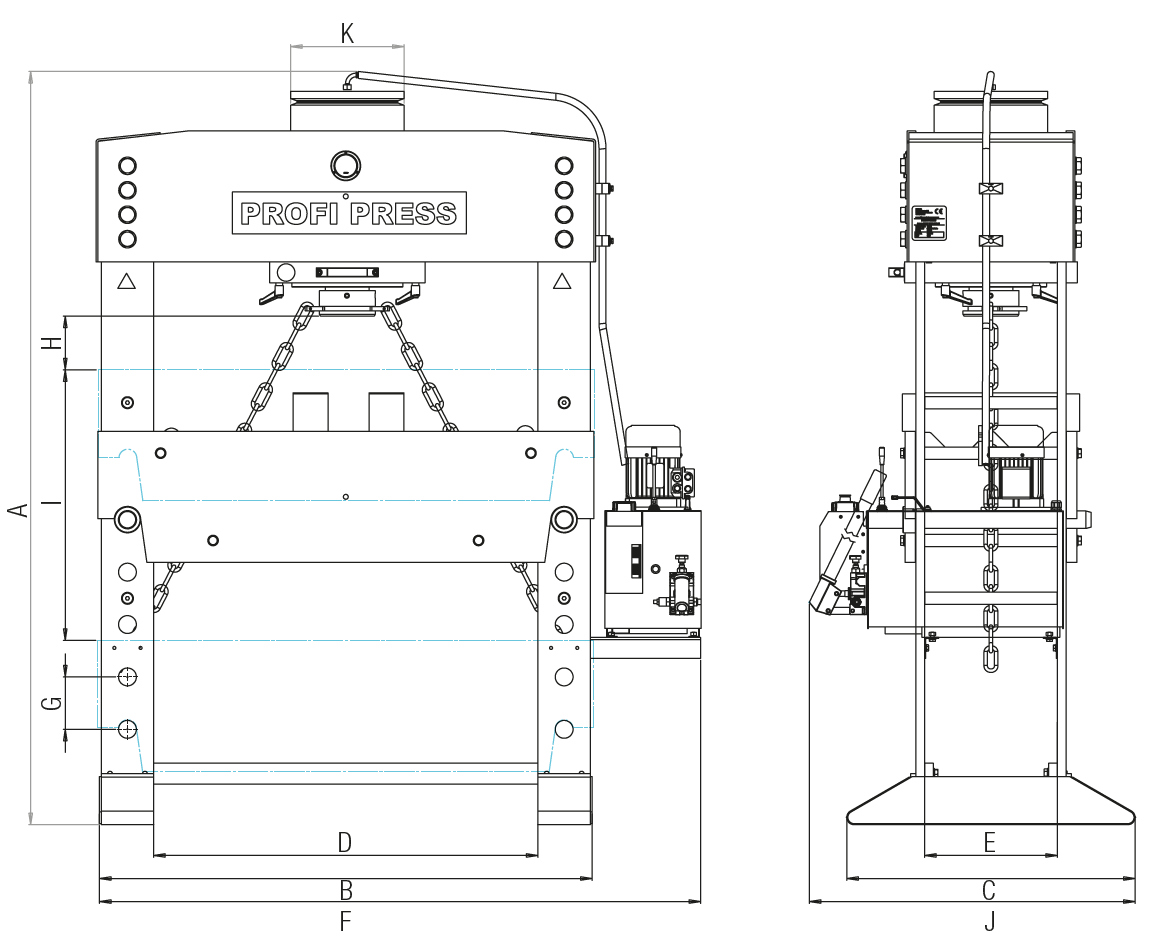

Dimensions in mm
- A: 2120
- B: 1000
- C: 695
- D: 750
- E: 260
- F: 1315
- G: 150
- H: 197
- I: 750
- J: 805
- K: 200
