300 ton M/H-M/C-2 D=1750
The 300 ton workshop press is a heavy-duty motorised hydraulic press with a working width of 1750 mm for handling large materials.
Equipped with a movable cylinder (left-right), in height adjustable work table (effortlessly with the motor), pressure regulation and 2 speeds.
This 300 ton workshop press will be delivered including a foot pedal or a hand remote controller.
Technical specifications
- Pressure force [kN]: 2943
- Maximum pressure [bar]: 260
- Piston stroke [mm]: 480
- Oil delivery [ltr/min]: 12/33
- Oil capacity [dm³]: 100
- Working speed [mm/sec]: 1.80
- Approaching speed [mm/sec]: 4.90
- Return speed [mm/sec]: 6.20
- Motor power [kW]: 5.5
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- Revolutions per minute [rpm]: 2800
- Insulation protection [IP]: 54
- Working width [mm]: 1750
- Weight [kg]: 3150
Diameters
- Inside diameter of cylinder [mm]: 380
- Diameter of piston rod [mm]: 180
- Diameter of piston head [mm]: 215
Features
- Movable cylinder
- Integrated pressure manometer
- Pressure regulation
- Hydraulic unit with two speeds
- In height adjustable working table
- Foot pedal or hand remote controller for the control of the piston
- V-block set for extra support
- NC-control to control the press settings digitally

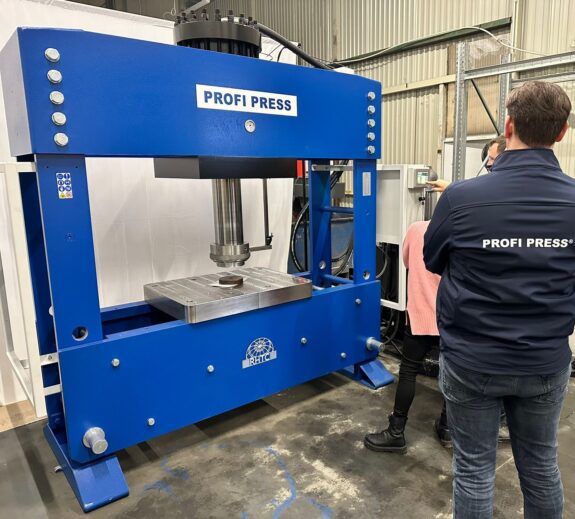

This is a custom-made 300 ton workshop press, delivered to Elestor, including NC-control, pressure plates and auto-mode (hence the light guards and protection screens around the hydraulic press).

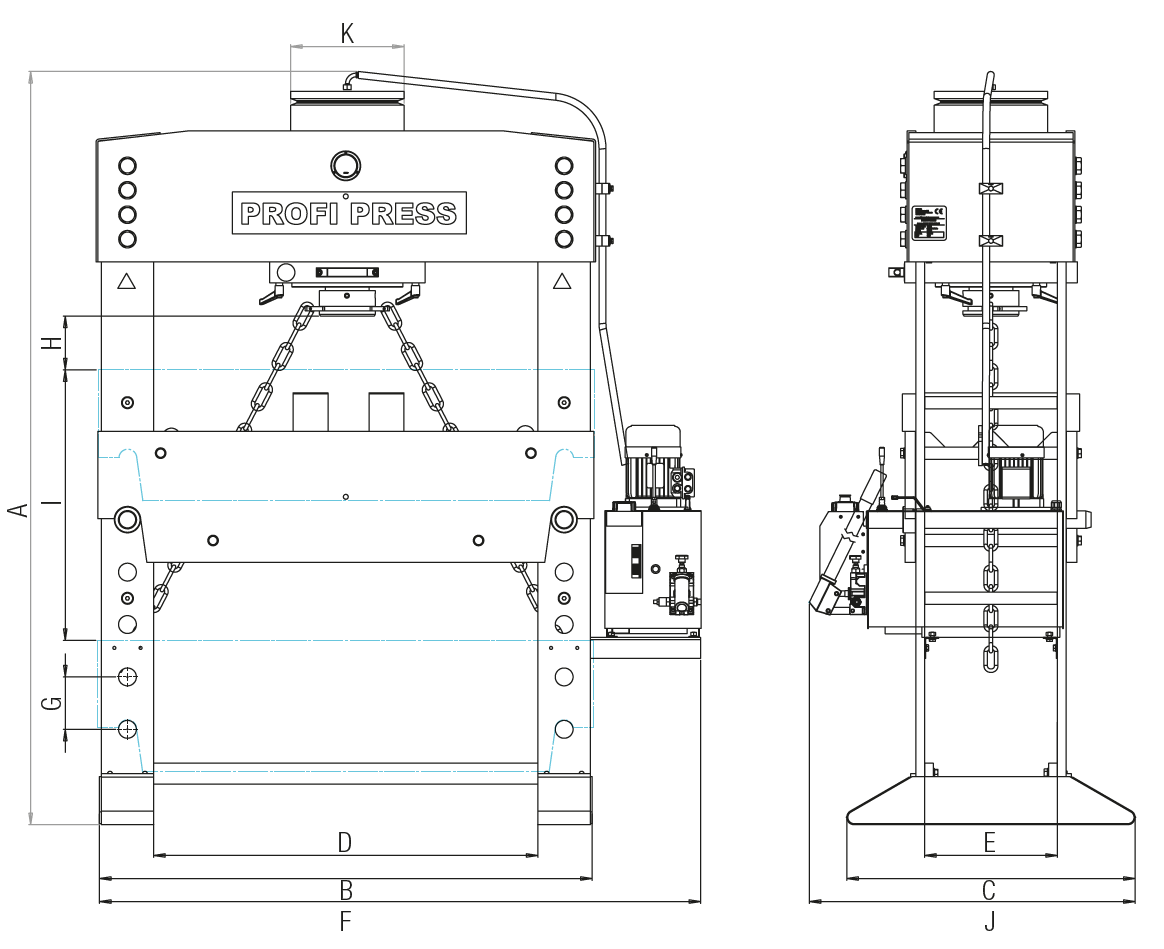

Dimensions
- A: 2250
- B: 2120
- C: 985
- D: 1750
- E: 500
- F: 2550
- G: 177
- H: 180
- I: 531
- J: 1085
- K: 420
