Customized Production Press

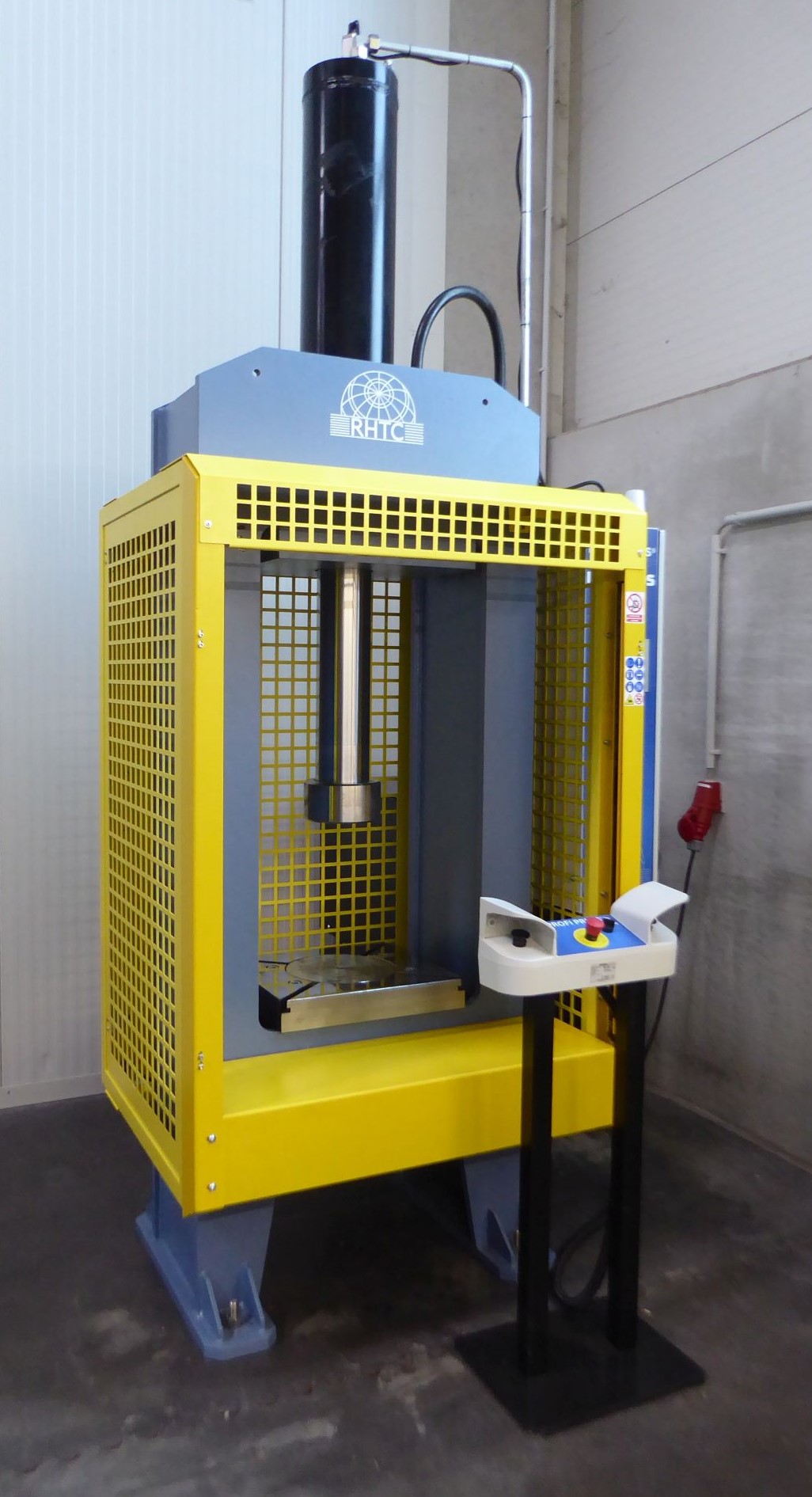

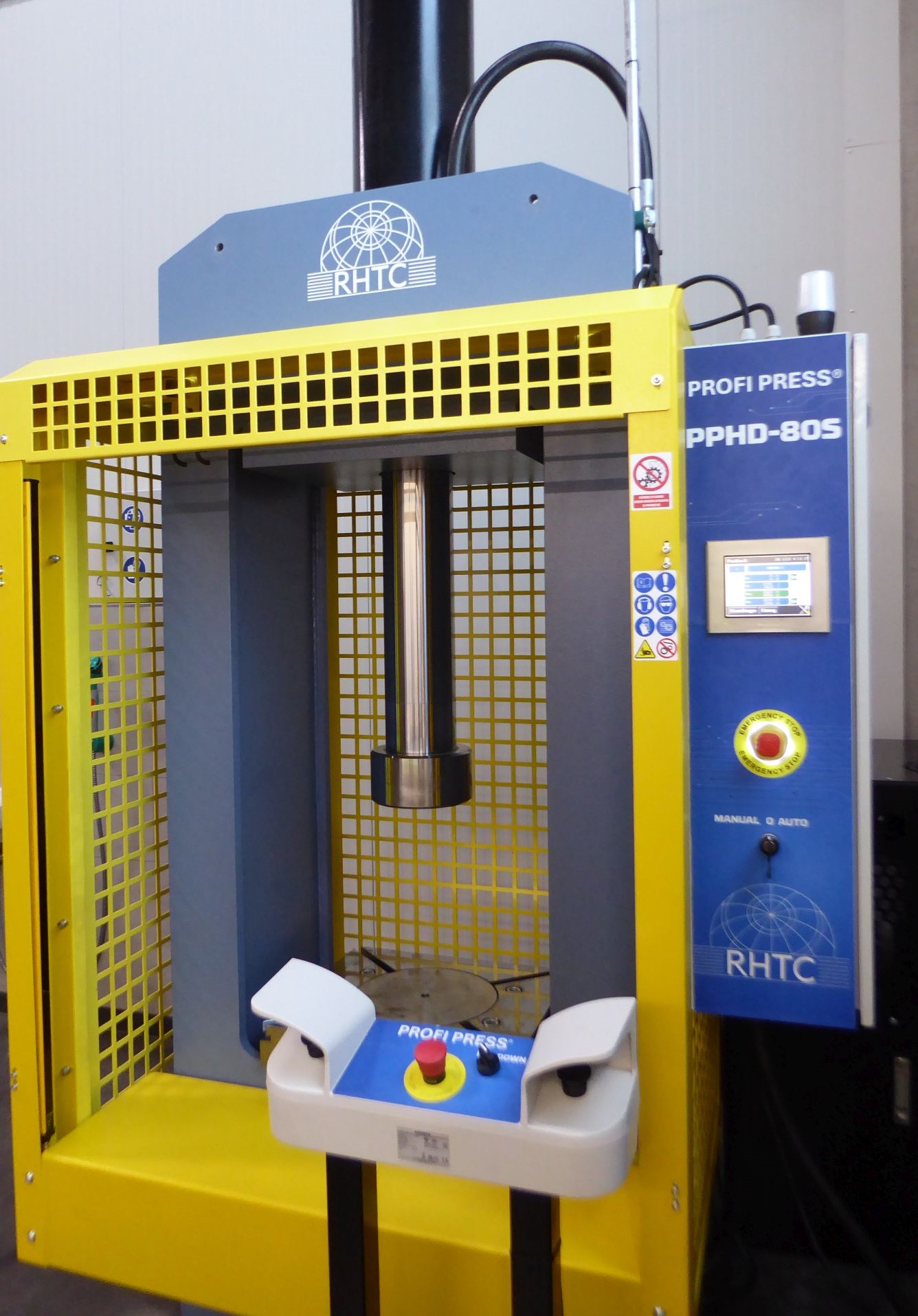

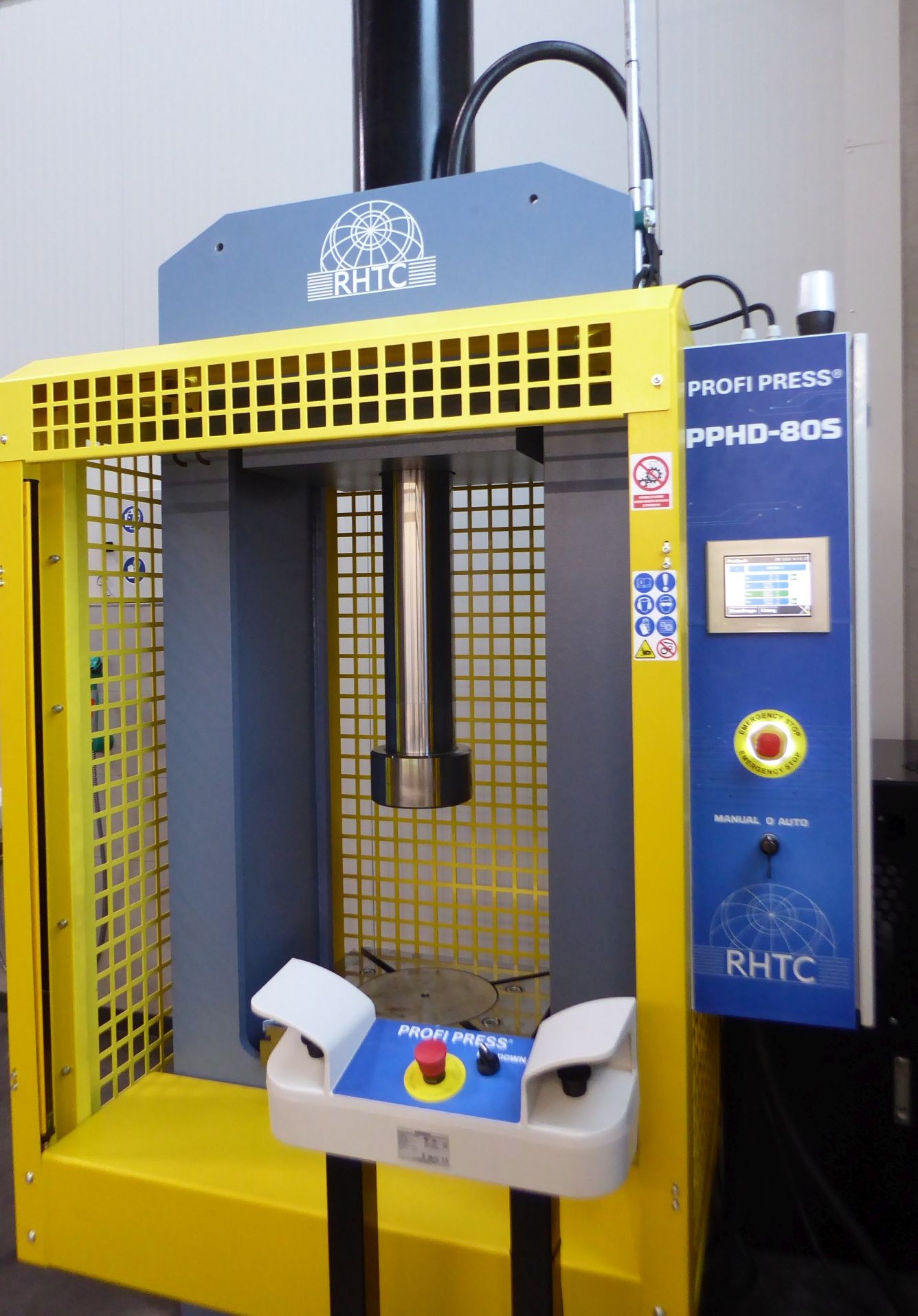

This 80 ton customized production press is produced with a vertical clearance of 980 mm and a horizontal clearance of 600 mm. The piston stroke is 900 mm and the frontal working area is equipped with light guards.
Furthermore, this 80 ton hydraulic press has a knob to regulate the working speed (from 0.1 to 9.2 mm/sec) and the approach- and return speeds have a fixed value. With the NC-control the customer can set the piston stroke (min., max. and switch-point) as well as the pressure and holding time. The machine is equipped with a two-hands operation and a tailor-designed table (including hole + cover) to be able to press things through.
Made in Europe and fully customized to the requirements of our customer.
Contact us if you would like to receive an offer for a customized production press, we look forward to discuss the possibilities together.
Technical specifications
- Nominal force [tn]: 80
- Maximum pressure [bar]: 250
- Piston stroke [mm]: 900
- Maximum vertical light [mm]: 980
- Working speed (adjustable) [mm/sec]: up to 9.2
- Lower table dimensions [mm]: 496 x 435
- Table height [mm]: 750
- Weight [kg] 1.750
- Tension: 400 / 690 V
Curious about our standard PPHD-models? Have a look at these models on our website or check out this video of the PPHD-150 on our YouTube-Channel.
Features of this customized production press
- Made out of S355JR steel
- Mechanized lower table including hole and cover plate
- A two-speed motorised hydraulic unit and operation is carried out by means of two-hands operation
- Equipped with NC-control to set and save the press cycle parameters and a flow regulation to regulate the working speed
- Safety is guaranteed according to level IV. The frontal working area is protected by light guards. The rear is equipped with a protection screen and a micro-disconnection switch
