Manual Rack Press: PP3HR

Rack Press from Profi Press - PP3HR model

This manual rack press (PP3HR model) has a pressure force of 400 kg. The power is linear and constant over the entire stroke according to the force exerted on the lever. The stroke can be adjusted from 0 to 80 mm and the vertical light can be adjusted from 35 to 270 mm. These settings ensure high precision and durability of this rack press. One can install a tool directly on the piston head thanks to the slider bore (16H7 x 26).

Setting Vertical Light on Manual Bench Presses from Profi Press

These models are frequently used for assembly operations, assembly of rings or bearings, small bending operations, various crimping operations, etc. Multi-functional; they are ideal for a wide range of applications in both industry and construction. Optionally we can deliver hygienic version presses (Zinc / Nickel or Stainless Steel) or we can add force / stroke monitoring in multiple solutions.

Very easy to install on a work bench, quick & easy to set up and made in Europe. We deliver these small manual presses directly from our stock in the Netherlands.

Technical specifications of this manual rack press
  • Pressure force [kg]: 400
  • Cylinder stroke [mm]: 0 – 80
  • Vertical light [mm]: 35 – 270
  • Throat depth [mm]: 80
  • Table size [mm]: 130 x 120
  • Total length [mm]: 210
  • Total height [mm]: 600
  • Weight [kg]: 17

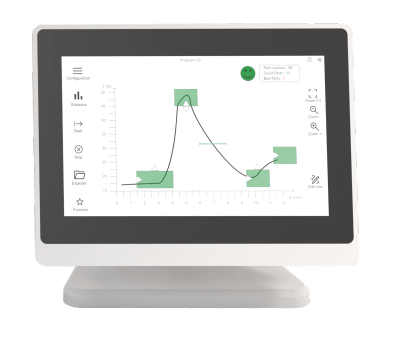

Optional force- and stroke monitoring, multiple solutions possible:

Force and Stroke Monitoring on Rack Presses - Profi Press



Manual Rack Press - PP3HR - Profi Press
