Manual Rack and Pinion Press: PP14HR

PP14HR with Capstan

This manual rack and pinion press (PP14HR model) has a pressure force of 1400 kg. The power is linear and constant over the entire stroke according to the force exerted on the lever. The stroke can be adjusted from 0 to 420 mm. These settings ensure high precision and durability of this manual press. One can install a tool directly on the piston head thanks to the slider bore (16H7 x 26) and this model is equipped with a rotating table of 238 mm.

Rotative table for larger Manual Rack and Pinion Presses

These models are frequently used for assembly operations, assembly of rings or bearings, small bending operations, various crimping operations, etc. Multi-functional; they are ideal for a wide range of applications in both industry and construction. Optionally we can deliver hygienic version presses (Zinc / Nickel or Stainless Steel) or we can add force / stroke monitoring in multiple solutions.

This manual press is particularly robust and does not require any maintenance: lubricating the moving parts twice a year with a fine oil and keeping it clean will guarantee long-lasting operation.

Very easy to install on a work bench, quick & easy to set up and made in Europe.

Technical specifications of this Manual Rack and Pinion Press

  • Pressure force [kg]: 1400
  • Cylinder stroke [mm]: 0 – 420
  • Vertical light [mm]: 420
  • Throat depth [mm]: 210
  • Table size [mm]: 240 x 200
  • Total length [mm]: 600
  • Total height [mm]: 862
  • Weight [kg]: 45

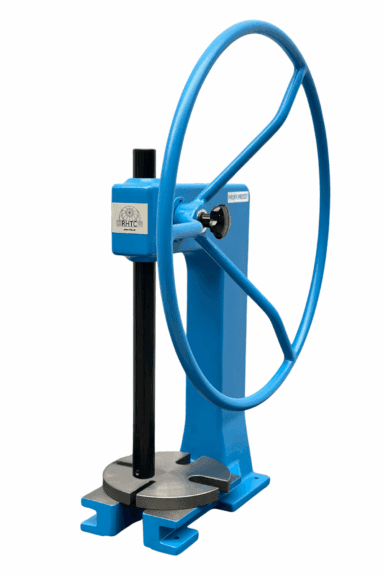

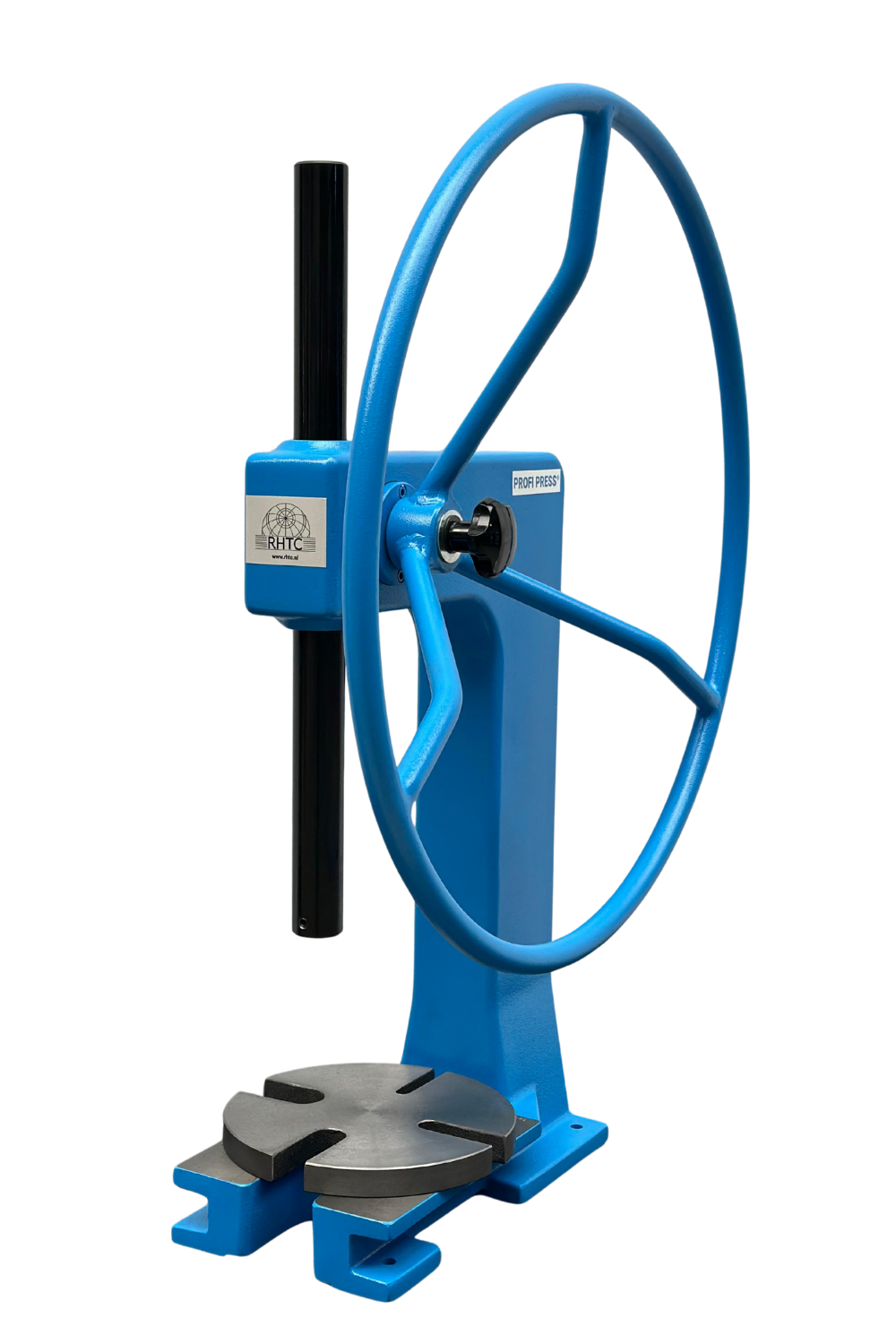

Can be delivered with capstan or flywheel.

Optional Force- and Stroke monitoring is possible, with multiple solutions:

Force and Stroke Monitoring on Rack Presses - Profi Press

Rack and Pinion Press (larger PPHR-model)
