Cambering Press 150 ton: PPHC-150
Our cambering press, 150 ton is a robust and durable hydraulic straightening press. Made in Europe and we guarantee a very high quality for these straightening machines.

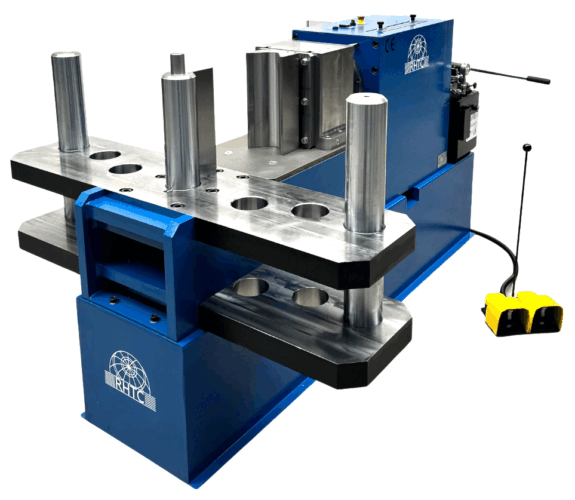

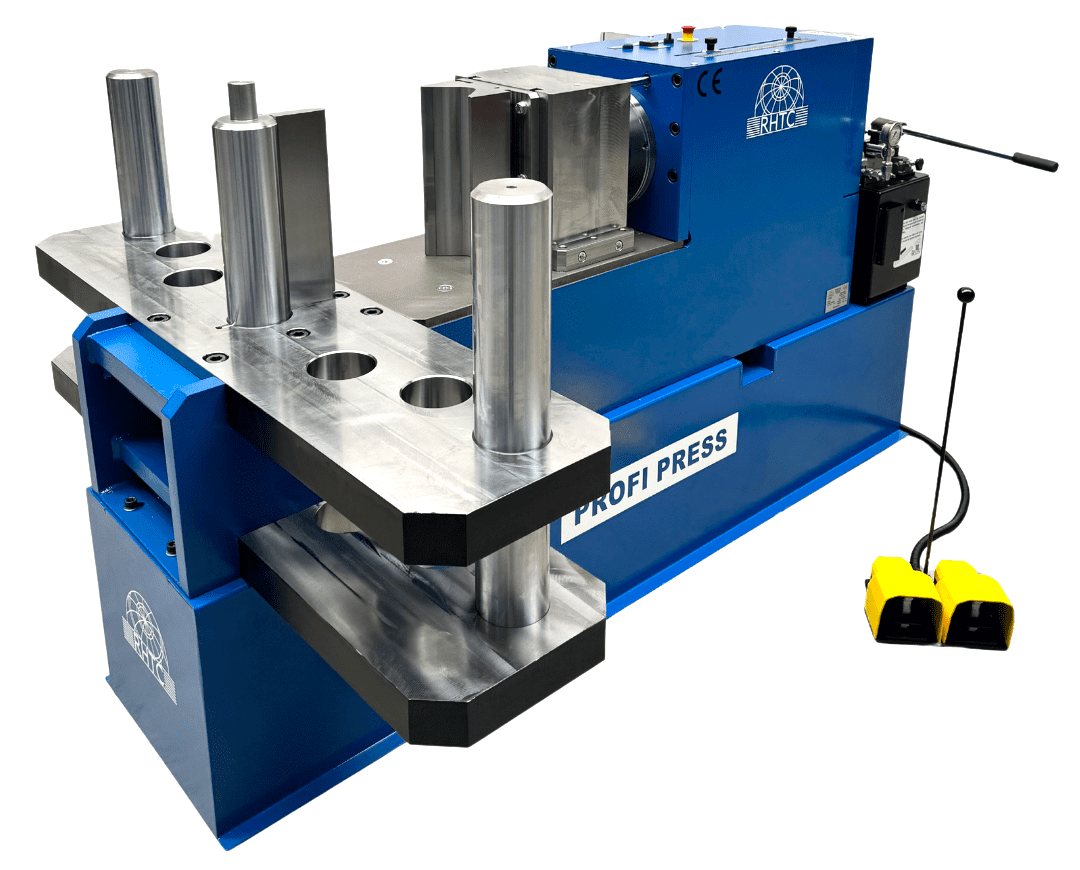

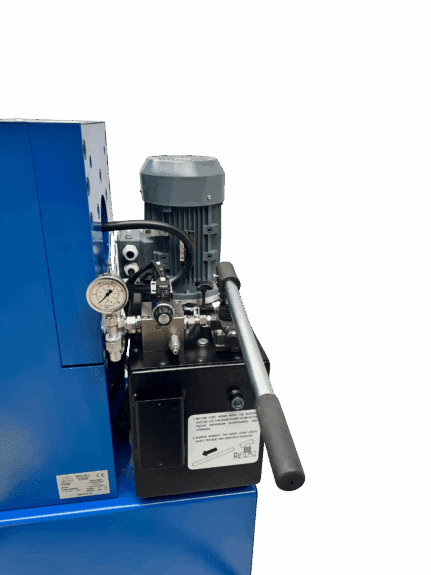

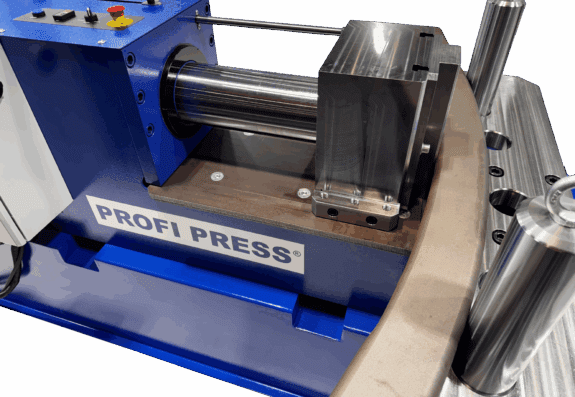

These horizontal presses have supporting back pins (*optionally available with a large back table) and a pushing main table with cylindrical, lateral guides for a perfect alignment. Thanks to the horizontal design of this cambering press, it is easy to handle large bars, beams and profiles. Our Profi Press cambering press features a double acting cylinder (including anti-turning system) and limit switches to regulate the cylinder stroke. Also, the hydraulic unit works with 2 speeds (with an automatic disconnection of the high speed when it feels counterpressure). Additionally it has a pressure regulator, a gauge in tons and a hand pump for precision pressing.
The Profi Press 150 ton cambering press meets and satisfies the essential health and safety requirements in accordance with the latest CE-standards. We deliver them with a warranty of 2 years. Furthermore, these hydraulic cambering presses can be adapted to special needs such as a larger opening between the tables or a big supporting back table, please contact us for more information.
Technical specifications of the cambering press 150 ton
- Pressure force [tn]: 150
- Motor power [kw]: 4
- Working speed [mm/sec]: 2.40
- Approaching speed [mm/sec]: 7.48
- Return speed [mm/sec]: 9.35
- Pressure max. [bar]: 250
- Piston stroke [mm]: 380
- Opening between tables [mm]: 500
- Pushing main table [mm]: 400 x 400
- Working height [mm]: 800
- Total length [mm]: 2350
- Total width [mm]: 1600
- Overall height [mm]: 1300
- Weight [kg]: 3450
Features of this PPHC-150
- Supporting back pins
- Pushing main table
- Cylindrical lateral guides for a perfect alignment of the main table

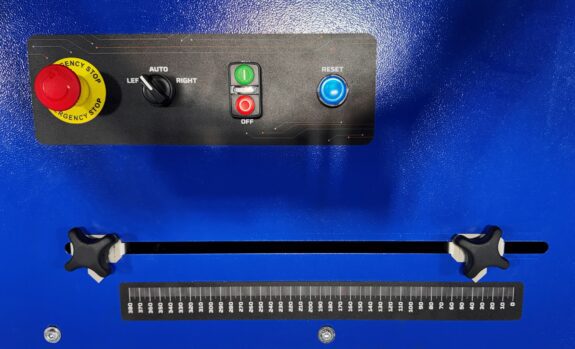

- Adjustable end-stroke switches
- Selector for working with 1 or 2 speeds
- Pressure regulator and manometer
- Hand pump for precision pressing
Optional accessories
- Supporting back table (1800 x 400 mm)
- Foot pedal, hand remote control or two-hands operation
- Basic supply rails with height adjustment (available in different lengths)
- Siemens NC-control to digitally set and save press parameters
- Multiple tools for specific tasks, contact us about your requirements!
