Hydraulic Horizontal Press: PPHC-100
Our Hydraulic Horizontal Press (100 ton capacity) is a robust and durable cambering press. Made in Europe and we guarantee a very high quality for these machines.
These cambering presses have supporting back pins (*optionally available with a large back table) and a pushing main table with cylindrical, lateral guides for a perfect alignment. Thanks to the horizontal design of this hydraulic horizontal press, it is easy to handle large bars, beams and profiles. This cambering press features a double acting cylinder (including anti-turning system) and limit switches to regulate the cylinder stroke. Also, the hydraulic unit works with 2 speeds (with an automatic disconnection of the high speed when it feels counterpressure). Additionally it has a pressure regulator, a gauge in tons and a hand pump for precision pressing.
The Profi Press hydraulic horizontal press meets and satisfies the essential health and safety requirements in accordance with the latest CE-standards. We deliver them with a warranty of 2 years. Furthermore, these hydraulic cambering presses can be adapted to special requirements such as a larger opening between the tables or a bigger support table, please contact us for more information.
Technical specifications of this hydraulic horizontal press
- Pressure force [tn]: 100
- Motor power [kw]: 3
- Working speed [mm/sec]: 2.54
- Approaching speed [mm/sec]: 9.90
- Return speed [mm/sec]: 12
- Pressure max. [bar]: 250
- Piston stroke [mm]: 380
- Opening between tables [mm]: 450
- Pushing main table [mm]: 300 x 350
- Working height [mm]: 800
- Total length [mm]: 2040
- Total width [mm]: 1500
- Overall height [mm]: 1200
- Weight [kg]: 1980
Features of this PPHC-100
- Supporting back pins
- Pushing main table
- Cylindrical lateral guides for a perfect alignment of the main table
- Adjustable end-stroke switches
- Selector for working with 1 or 2 speeds
- Pressure regulator and manometer
- Hand pump for precision pressing
Optional accessories
- Supporting back table (1500 x 350 mm)
- Foot pedal, hand remote control or two-hands operation
- Basic supply rails with height adjustment (available in different lengths)
- Siemens NC-control to digitally set and save press parameters

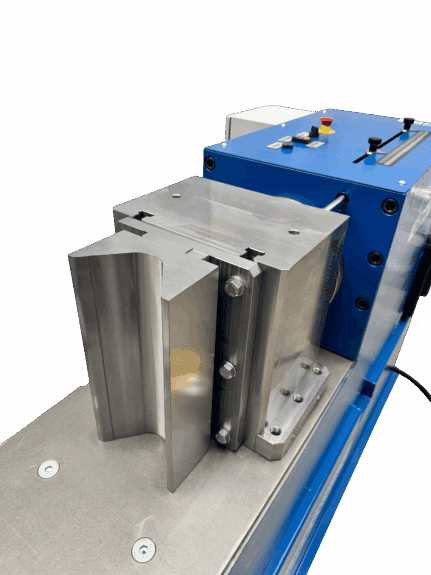

- Multiple tools for specific tasks, contact us about your requirements!
