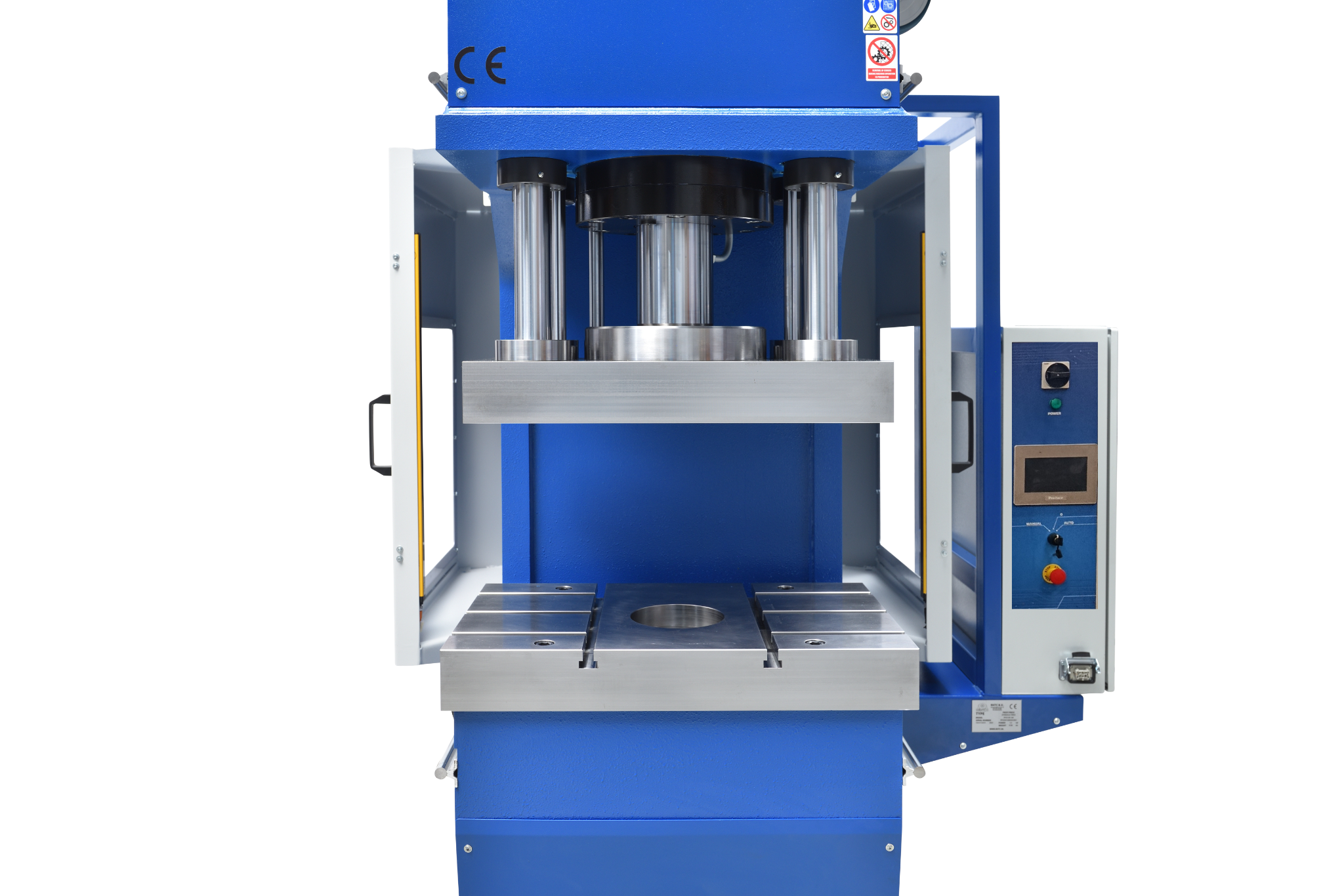

150 Ton C Frame Press: PPCU-150
This 150 ton C frame press is suitable for performing work involving deep-drawing, forming and stamping.
Designed with an upper- and lower table with DIN-650 T-grooves. The upper table ensures a perfect alignment by means of cylindrical lateral guides.
We equip the 150 ton C frame press with a selector for selecting the work-mode, two speeds, a pressure switch and light guards in the frontal working area of the press. The cylinder stroke is easy to adjust with the NC-control on this C-frame Press, so you can set the parameters for the cylinder stroke digitally.
All our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed!
Technical specifications of this PPCU-150
- Force [tn]: 150
- Motor power [kw]: 7.5
- Throat depth [mm]: 360
- Working speed [mm/sec]: 4.3
- Approaching speed [mm/sec]: 20
- Return speed [mm/sec]: 26.7
- Maximum pressure [bar]: 250
- Piston stroke [mm]: 260
- Lower table size [mm]: 850 x 600 x 110
- Upper table size [mm]: 720 x 460 x 110
- Max. vertical light [mm]: 450
- Working height [mm]: 875
- Total length [mm]: 1800
- Total width (frontal) [mm]: 1550
- Overall height [mm]: 2300
- Weight [kg]: 4500
Features of this 150 ton C Frame Press
- Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables
- Perfect alignment thanks to four lateral guides for the upper table
- Two lateral protection screens (which can be opened) with level IV safety light guards at the front
- The cylinder stroke is easy to adjust with the end-stroke switches
- Manual / automatic mode
- Two cylinder speeds
- Pressure switch and manometer
- Operation by means of a foot pedal
At our You-Tube Channel we show various videos of our C-frame presses, feel free to have a look or contact us for more information!
Optional accessories
- Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke)
- Higher speeds with a different pump, please find the PPCU-HS-150 here
- Hydraulic ejector placed in the upper- or lower table (or both)
- Hydraulic cushion
- Software adapted to your requirements
- Cooling equipment for the hydraulic group by an air-oil cooling system
