PPCU-100

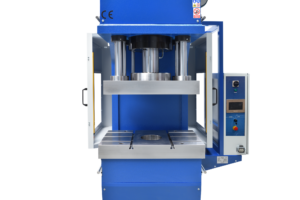

This 100 ton C frame press is suitable for performing work involving deep-drawing, forming and stamping. One of our best-sellers!
Designed with an upper- and lower table with DIN-650 T-grooves. The upper table ensures a perfect alignment by means of two cylindrical lateral guides (∅ 80 mm).
We produce this 100 ton C frame press with a selector for manual / semi-automatic / automatic work-mode, two speeds, a pressure switch and light guards in the frontal working area of the press. The cylinder stroke is easy to adjust with the end-stroke limit switches. We can also install Siemens NC-control on this C-frame Press, so you can set the parameters for the cylinder stroke and pressure (incl. holding time) digitally.
All our C-frame presses are made in Europe and delivered according to the latest CE standards. High quality guaranteed!
Technical specifications
- Force [tn]: 100
- Motor power [kw]: 7.5
- Throat depth [mm]: 320
- Working speed [mm/sec]: 6.4
- Approaching speed [mm/sec]: 30
- Return speed [mm/sec]: 53
- Maximum pressure [bar]: 250
- Piston stroke [mm]: 260
- Guides diameter [mm]: 80
- Lower table size [mm]: 780 x 480 x 100
- Upper table size [mm]: 700 x 400 x 100
- Max. vertical light [mm]: 550
- Working height [mm]: 875
- Total length [mm]: 1600
- Total width (frontal) [mm]: 1500
- Overall height [mm]: 2200
- Weight [kg]: 3400
Features of this 100 ton C Frame Press
- Equipped with an upper- and lower table with T-grooves (DIN-650); tools can be easily fastened onto the tables
- Perfect alignment thanks to two lateral guides for the upper table
- Two lateral protection screens (which can be opened) with level IV safety light guards at the front
- The cylinder stroke is easy to adjust with the end-stroke switches
- Manual / semi-automatic / automatic mode
- Two cylinder speeds
- Pressure switch and manometer
- Operation by means of a foot pedal
At our You-Tube Channel we show various videos of our C-frame presses, feel free to have a look or contact us for more information!
Optional accessories
- Geometry adapted to your requirements (for example larger tables, a larger vertical light or a larger piston stroke)
- Higher speeds with a different pump, please find the PPCU-HS-100 model here
- Hydraulic ejector placed in the upper- or lower table (or both)
- Hydraulic cushion
- PLC Siemens mod. SIMATIC S7 1200 with 7” touch screen
- Cooling equipment for the hydraulic group by an air-oil cooling system
