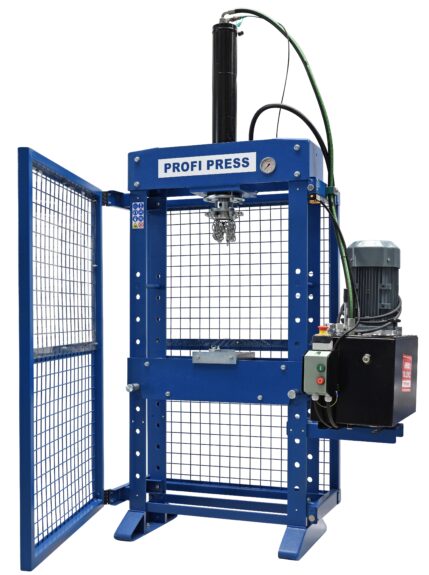

15 ton broaching press
This 15 ton broaching press from Profi Press is exclusively made in our factory in Europe and directly available from our stock in the Netherlands.

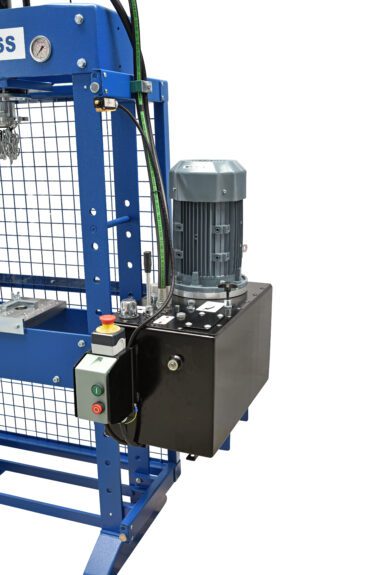

The piston stroke is 600 mm and the hydraulic press includes a joystick for the vertical movement of the piston. This broaching press also incorporates a pressure control valve and a speed control valve. Including a safety fence with interlock and an in-height adjustable work table (effortlessly by means of the motor).
Contact us for more information or ask for a free quotation via the button below!
Technical specifications
- Pressure force [kN]: 147
- Pressure max. [bar]: 232
- Piston stroke [mm]: 600
- Oil capacity [dm³]: 35
- Oil delivery [ltr/min]: 11.8
- Working speed [mm/sec]: 0-30
- Approaching speed [mm/sec]: 0-30
- Return speed [mm/sec]: 0-40
- Motor power [kW]: 5.5
- Voltage [V]: 400/3
- Frequency [Hz]: 50/60
- Revolutions per minute [rpm]: 1500
- Insulation protection [IP]: 54
- Weight [kg]: 305
Diameters
- Inside diameter of cylinder [mm]: 90
- Diameter of piston rod [mm]: 50
- Diameter of piston head [mm]: 80
Features of this 15 ton broaching press
- Integrated pressure manometer
- Pressure regulation
- In height adjustable working table
- Joystick for the control of the piston
- Speed control valve
- Safety fence with interlock
Optional accessories
- V-block set for extra support
- Collection tray between the feet of the press
- Collection tray for the broach-tool
- Material tray for the working table
Dimensions in mm
- A: 2300
- B: 820
- C: 494
- D: 650
- E: 200
- F: 1140
- G: 100
- H: 112
- I: 900
- J: 700
- K: 110
