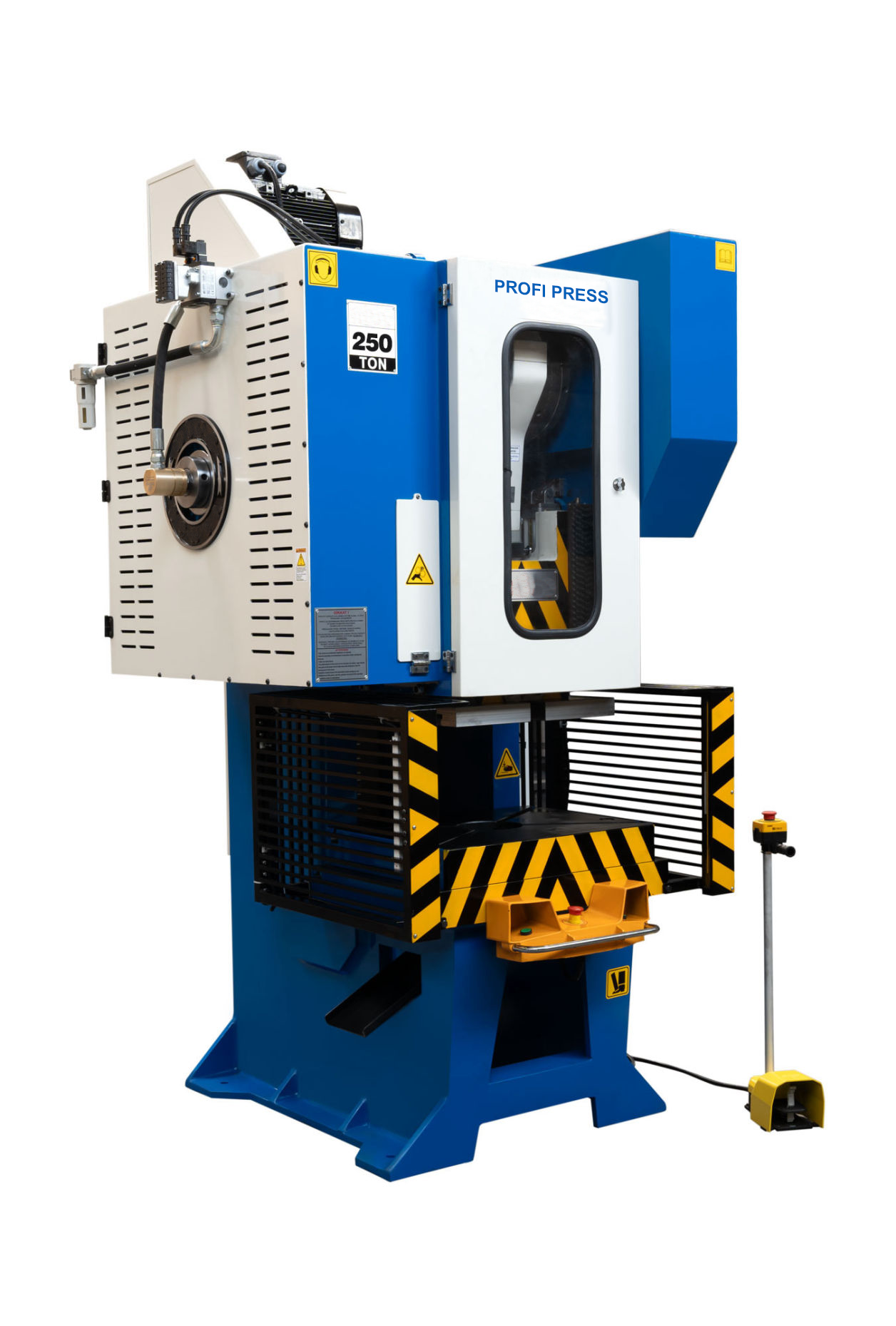

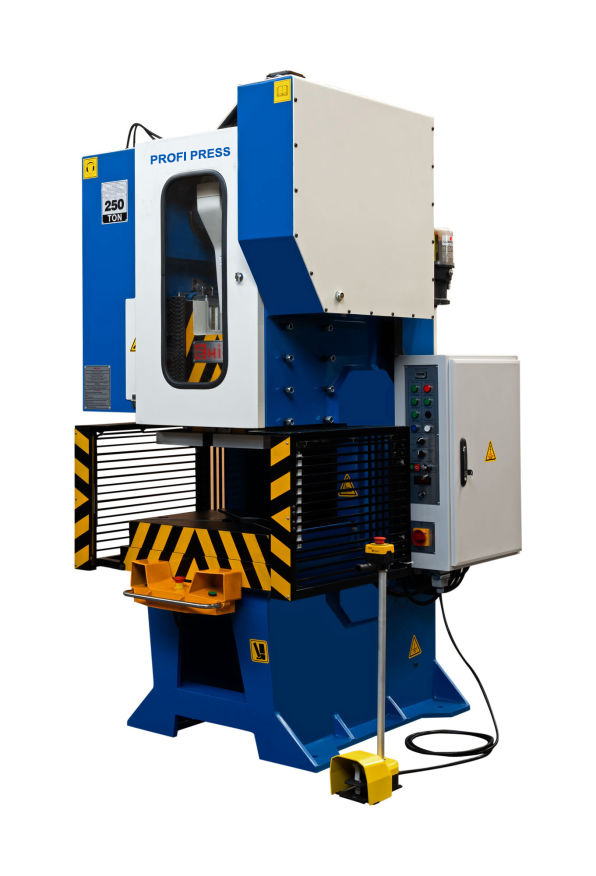

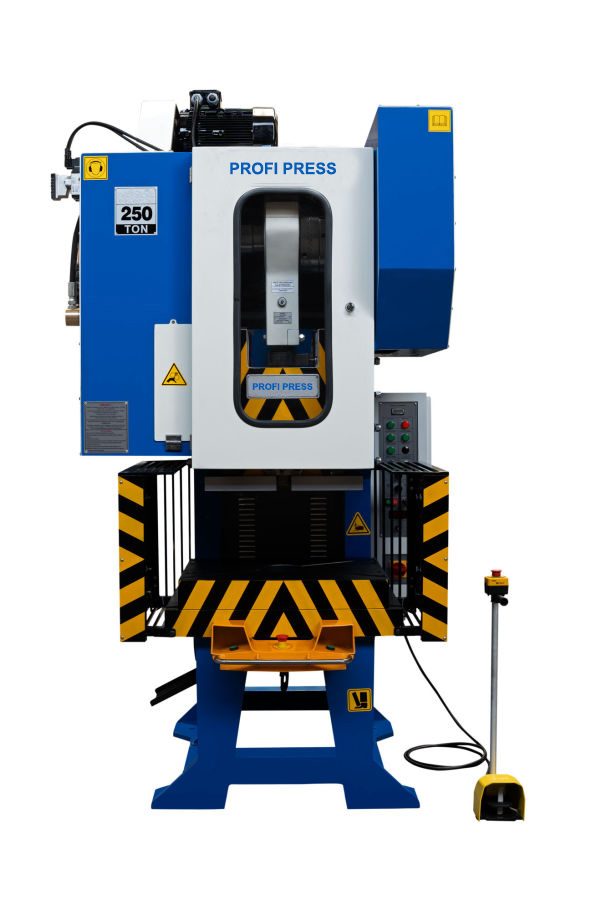

250 Ton Mechanical Press: PPEP-250
This 250 Ton Mechanical Press is suitable to carry out tasks involving deep-drawing, cutting, punching and stamping. Our Profi Press mechanical presses can be used for various applications in many different industries: the automotive, railway and aerospace industries (for example) and many more related industries that use metal forming.
Made of S355JR steel and equipped with a 4 guided ram. The unique feature of this type of press is the full crankshaft system, a solid straight eccentric axle for more rigidity. This high performance Profi Press features a central lubrication system, mechanical overload protection and a pneumatic clutch-brake combination.
RHTC delivers this 250 tons mechanical press and all these various presses in accordance with the latest CE standards. High quality guaranteed!
Please do not hesitate to contact us when you have any questions about our Profi Press program. We also would like to invite you to visit our You-Tube Channel to see some videos of all the different metal working machines we have in our assortment.
Technical specifications
- Pressure force [tn]: 250
- Motor power [kw]: 22
- Throat depth [mm]: 395
- Strokes per minute [spm]: 44
- Stroke adjustment [mm]: 10 – 150
- Distance between table and ram [mm]: 580
- Ram adjustment [mm]: 100
- Table size [mm]: 790 x 1040
- Ram size [mm]: 285 x 515
- Table height [mm]: 745
- Ø hole in the table [mm]: 255
- Ø hole in the ram [mm]: 70
- Total width (frontal) [mm]: 2100
- Total length [mm]: 1760
- Overall height [mm]: 3250
- Weight [kg]: 11000
Features of this 250 ton mechanical press

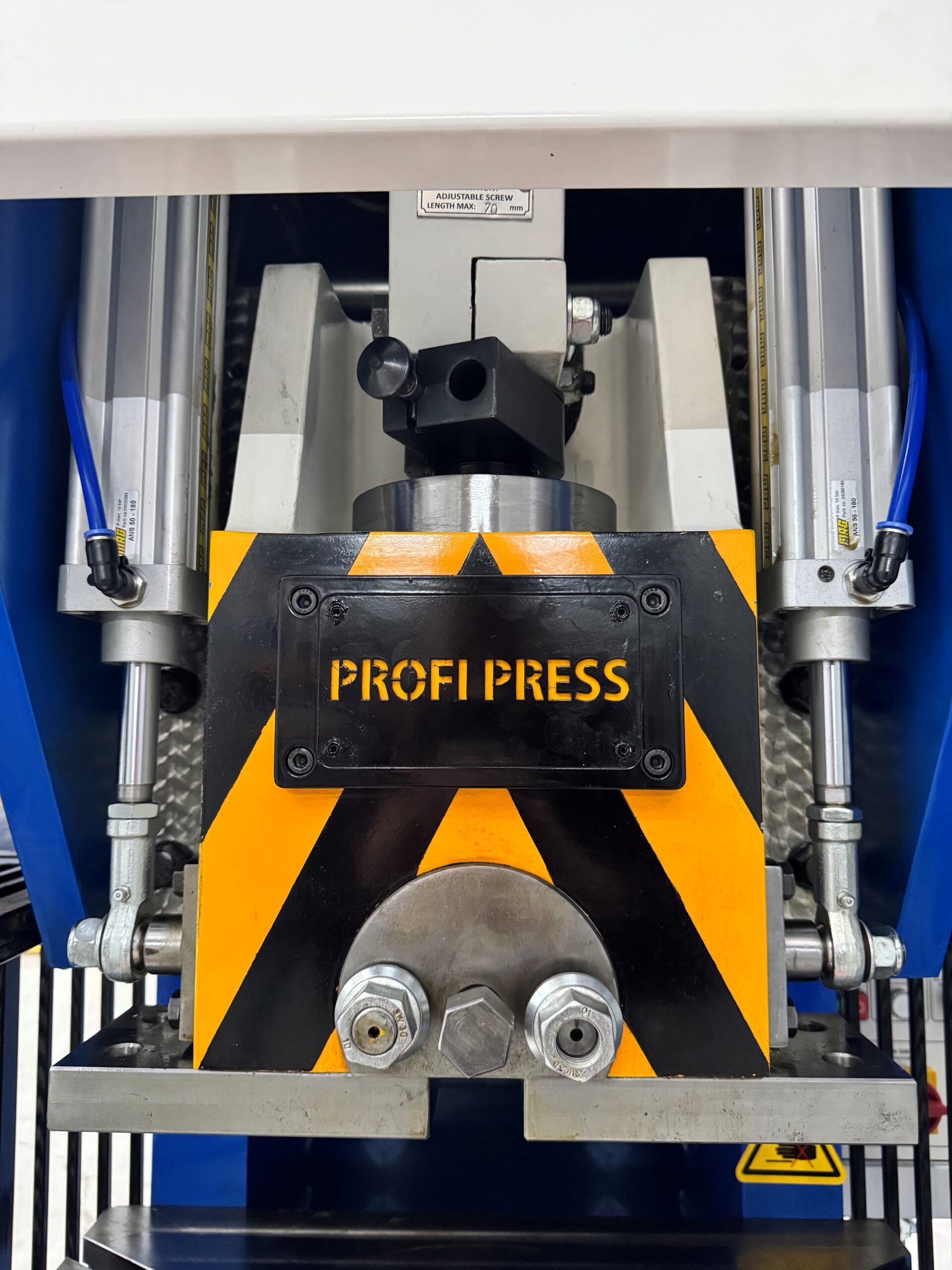

- Ram with 4 guides
- Mechanical overload protection to protect the machine components and installed tools
- Central lubrication system
- Pneumatic clutch and brake combination
- Two lateral protection screens with level IV safety light guards

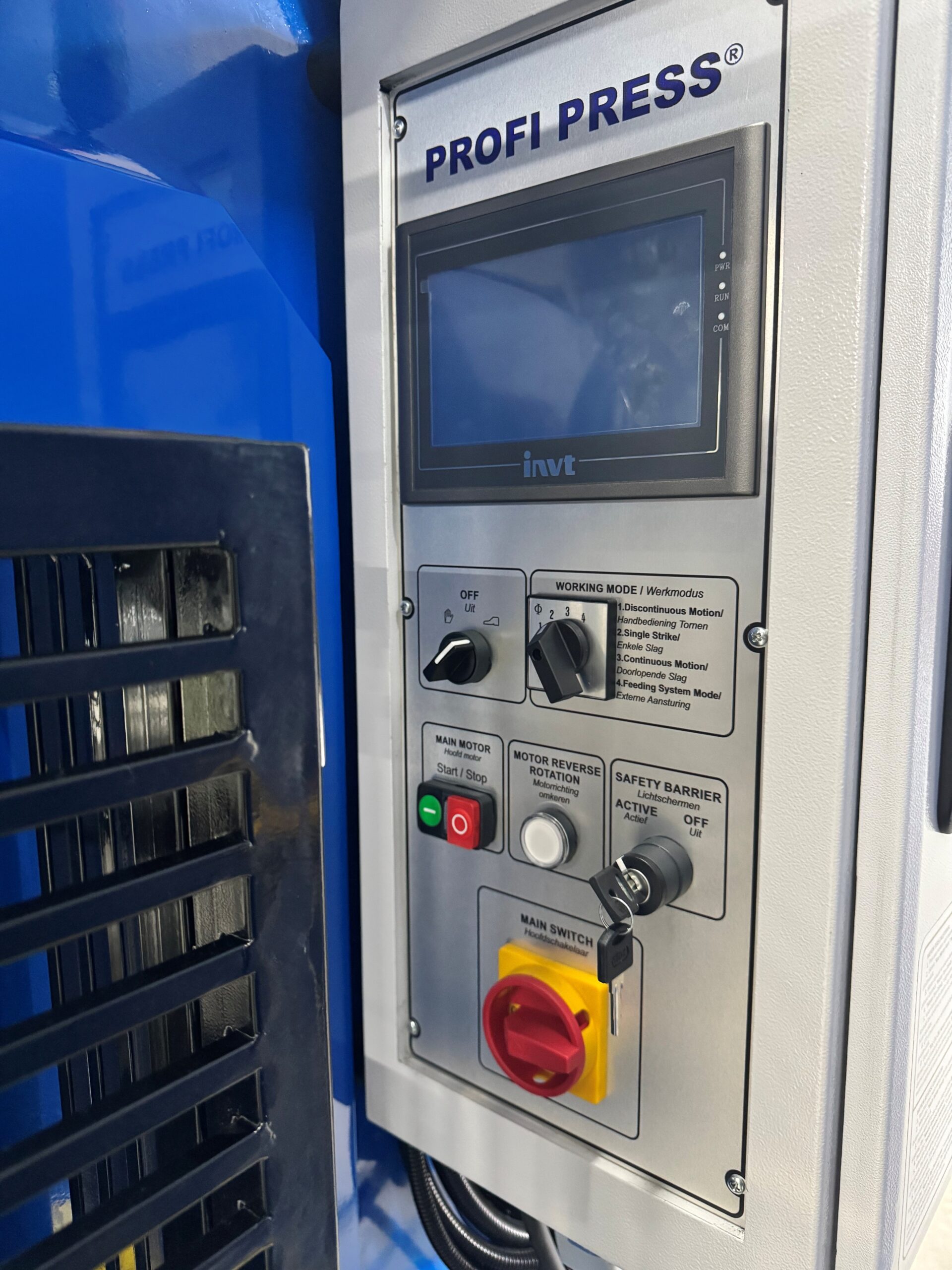

- Programmable control system (PLC)
- Adjustable stroke
- Adjustable ram
- Operation by means of two-hands control as well as a foot pedal
Optional accessories
- 6 guided ram
- Hydraulic overload protection system
- Adjustable speed system
- Electric and timed automatic lubrication system
- NC digital display with memories to save various working cycles
